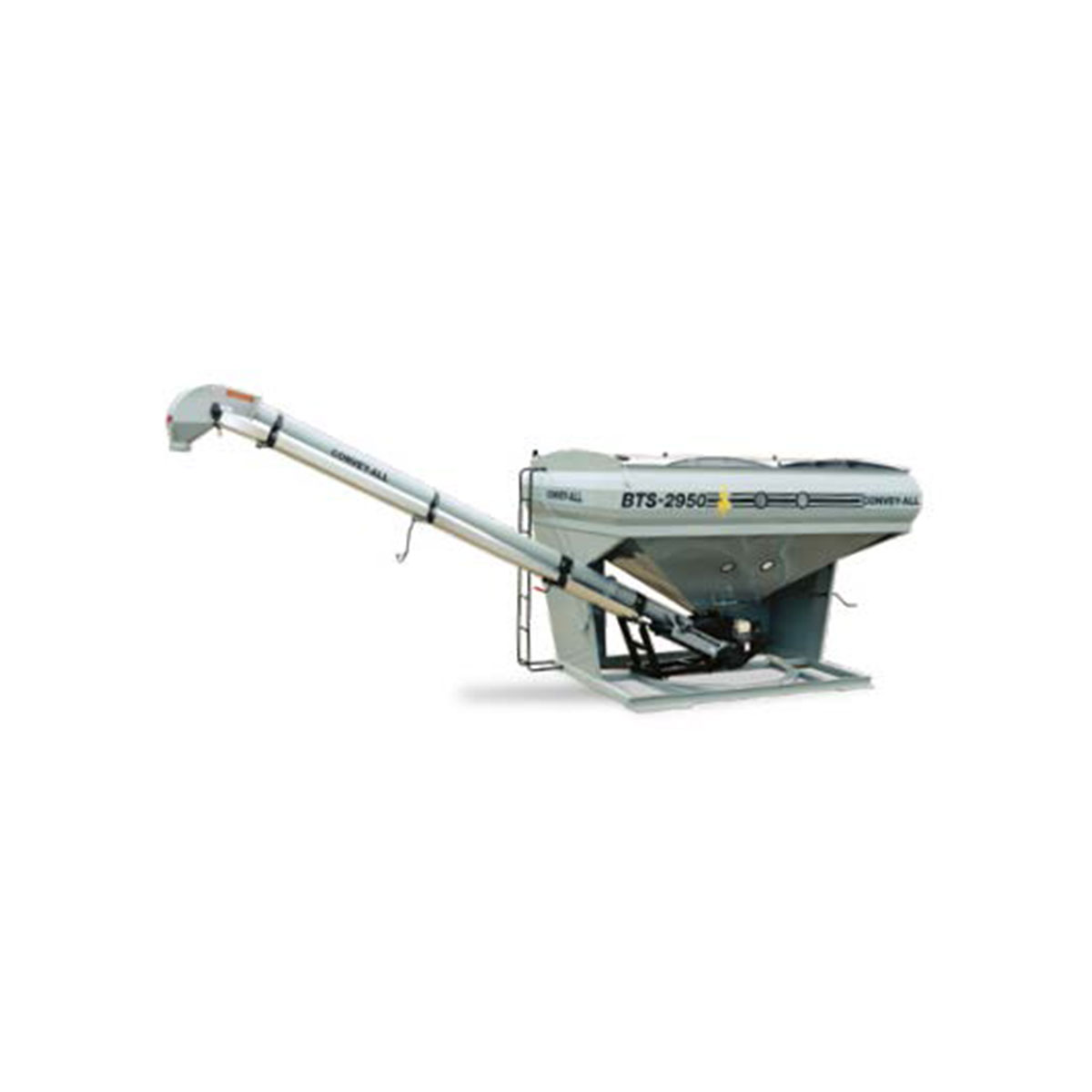

BTS-2950
Our bean tenders are designed to efficiently move grain, pulse crops, fertilizer, or any granular material. The tender can be purchased with it’s own trailer, or mounted to any flatbed truck or trailer for convenient transportation.
Fill any planter, including centre fill models, fast and effortlessly. The unloading conveyor can be swung from front to back, down the driver side.
Resources Show / Hide more information
Features Show / Hide more information
1. 5.5 hp gas engine
2. Manual roll tarp
3. 2 button remote control
4. Ladders, front and rear
Applications Show / Hide more information
1.Seed
2.Fertilizer
3.Load planters
Specifications Show / Hide more information
| Model | PT-100 | BTS-115 | WT-295 | BTS-2950 | BTS-410 |
|---|---|---|---|---|---|
| Conveyor Size | 21’, 8” Tube, 10” Belt | 18’, 8” Tube, 10” Belt | 20’, 10” Tube, 16” Belt | 21’, 8’ Tube, 10” Belt | 8’ Tube, 10” Belt |
| Overall Length | 32’ 2” | 22’ 2” | 25’ 3” | 24’ 7” | 26’ 1” |
| Hopper Length | 8’ 3” | 7’ | 11’ 11” | 11’ 11” | 14’ 6” |
| Hopper Height | n/a | 7’ 5” | 8’ 7” | 8’ 5” | 9’ 3” |
| Hopper Width | n/a | 7’ | 8’ 5” | 8’ 5” | 8’ 5” |
| Discharge Height | 8’ 11” | 8’ 3” | 9’ 7” | 8’ 3” | 8’ 5” |
| Conveyor Height | 12’ 7” | 10’ | 12’ 6” | 10’ | 12’ 2” |
| Conveyor Swing | 180° | 90° | 140° | 140° | 140° |
| Empty Weight (Trailer Not Incl.) | 1550 lb | 2125 lb | 2950 lb | 3000 lb | 3250 lb |
| Total Units | 100 | 115 | 295 | 295 | 410 |
| Total Bushels | 80 | 92 | 235 | 235 | 330 |
The BTS-2950 Tender has a 50/50 split compartment. The conveyor can unload at a rate of 1500 lb/min.
BTS = Bean Tender-Swing | WT = Weigh Tender | PT = Pro-Box Tender
Accessories & Options Show / Hide more information
1.
Full wireless remote
2.
Weigh scale package
3.
Extendable downspout
4.
Trailer with electric brakes
