PT-100

Meridian Mfg. - PT-100
Features
Applications
Specifications
Accessories

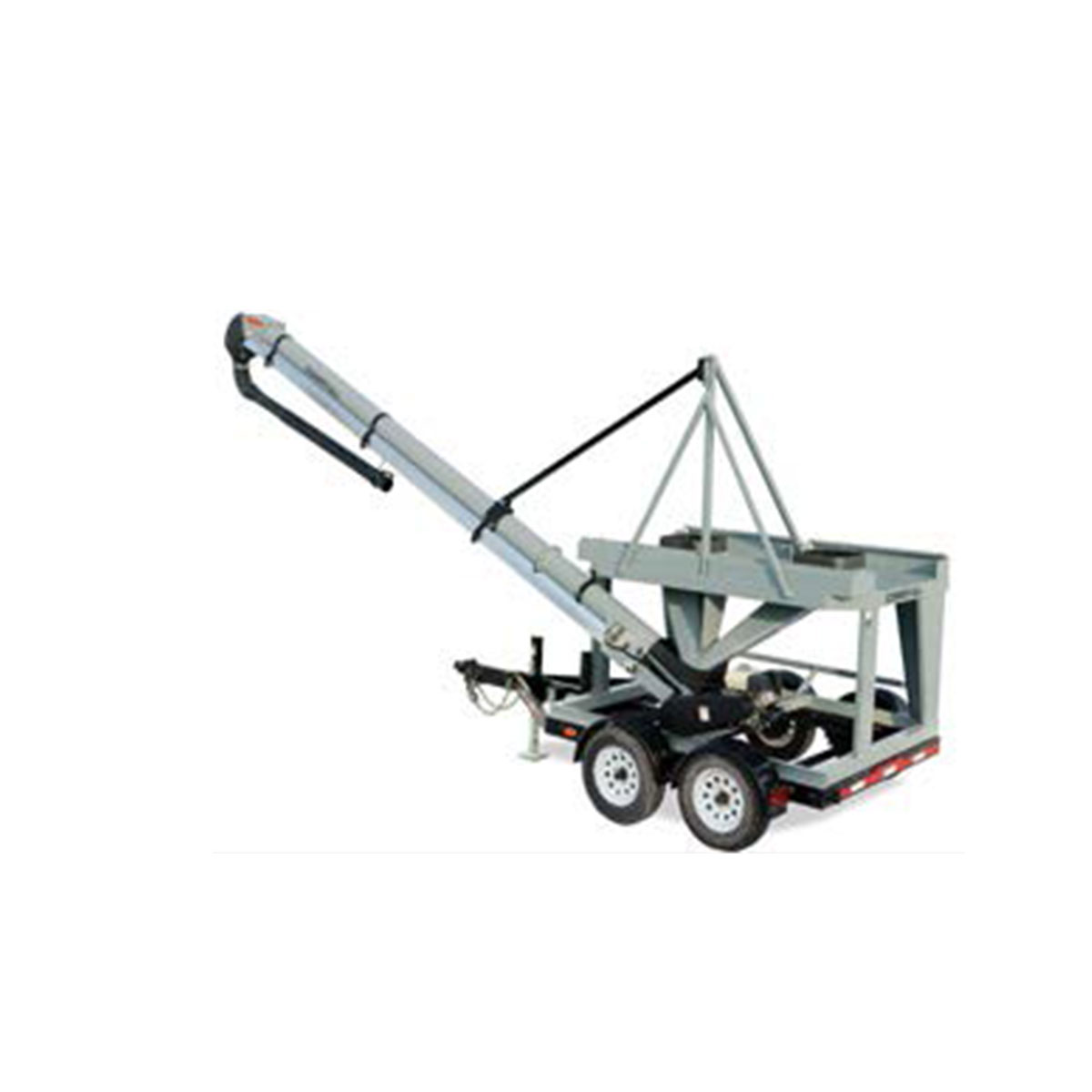

The PT-100 Tender, part of the PT-Series, holds two pro boxes. The 21′ long conveyor will fill your planter quickly and effortlessly, unloading a capacity of 1500 LBS/MIN.



Features Show / Hide more information

1. 5.5 hp gas engine
2. Holds 2 pro boxes
3. 2 button remote control

Applications Show / Hide more information

1.Seed
2.Fertilizer
3.Load Planters

Specifications Show / Hide more information

Model PT-100 BTS-115 WT-295 BTS-2950 BTS-410
Conveyor Size 21’, 8” Tube, 10” Belt 18’, 8” Tube, 10” Belt 20’, 10” Tube, 16” Belt 21’, 8’ Tube, 10” Belt 8’ Tube, 10” Belt
Overall Length 32’ 2” 22’ 2” 25’ 3” 24’ 7” 26’ 1”
Hopper Length 8’ 3” 7’ 11’ 11” 11’ 11” 14’ 6”
Hopper Height n/a 7’ 5” 8’ 7” 8’ 5” 9’ 3”
Hopper Width n/a 7’ 8’ 5” 8’ 5” 8’ 5”
Discharge Height 8’ 11” 8’ 3” 9’ 7” 8’ 3” 8’ 5”
Conveyor Height 12’ 7” 10’ 12’ 6” 10’ 12’ 2”
Conveyor Swing 180° 90° 140° 140° 140°
Empty Weight (Trailer Not Incl.) 1550 lb 2125 lb 2950 lb 3000 lb 3250 lb
Total Units 100 115 295 295 410
Total Bushels 80 92 235 235 330

The PT-100 Pro Box Tender holds 2 boxes, and can discharge 1500 lb/min.

BTS = Bean Tender-Swing | WT = Weigh Tender | PT = Pro-Box Tender


Accessories & Options Show / Hide more information

1. Extendable downspout
2. Trailer with electric brakes
