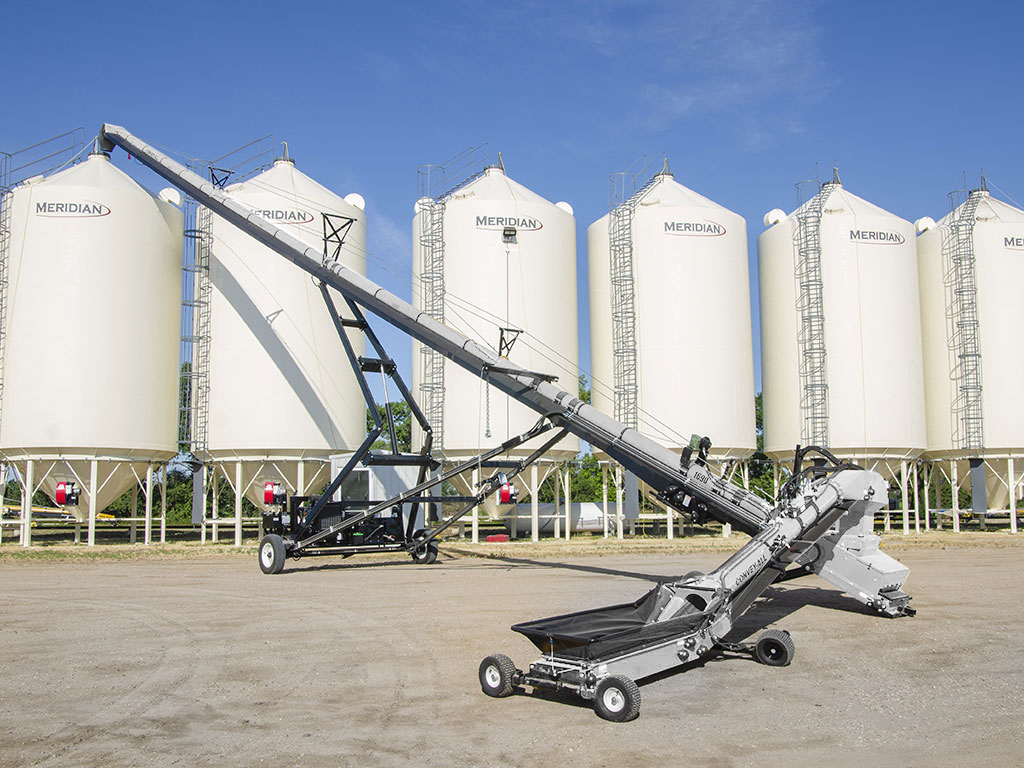

The Stainless Steel Convey-All™ 1600 Series Bin Fill Belted Conveyors are available in lengths from 55’-100’. These conveyors feature a 16’’ belt in a 10’’ tube 304L stainless steel tube–for improved handling of corrosive material–and can move up to 9,000BPH.
Our bin fill conveyors feature a collapsible hopper, full-length windguards, HD scissor lift undercarriages, and our Positive Pinch Drive Box. For ultimate convenience, consider our swing-out and self-propel packages.
For standard duty mild-steel conveyors with a powder coat finish, click here.

Stainless Steel Convey-All® 2200 Series Bin Fill Belted Conveyors are our largest and fastest Bin Fill Conveyors. Plus, with a 22’’ belt in a 14’’ 304L stainless steel tube, these conveyors will move 12,000BPH of corrosive product quickly.
The undercarriages are rugged and heavy duty, using structural steel and fabricated for bolt-together durability. Combine our bin fill Conveyors with a Convey-All Transfer Conveyor or Swing Out for ultimate efficiency.
For standard duty mild-steel conveyors with a powder coat finish, click here.

Resources Show / Hide more information

Features Show / Hide more information

1. Collapsible hopper
2. Full length windguards
3. Heavy-duty scissor lift undercarriages
4. Positive Pinch Drive Box

Applications Show / Hide more information

1.Grain
2.Seed
3.Fertilizer

Specifications Show / Hide more information

Model Under Carriage Mover Kit Swing Out Axle Width Transport Height Transport Length
1655 Scissor Lift N/A N/A 11’ 4” 12’ 6” 60’ 8”
1670 Scissor Lift AVAIL AVAIL 11’ 4” 11’ 10” 75’ 11”
1675 Scissor Lift AVAIL AVAIL 11’ 4” 12’ 5” 80’ 11”
1685 Scissor Lift AVAIL AVAIL 12’ 6” 11’ 7” 91’ 1”
1690 Scissor Lift AVAIL AVAIL 12’ 6” 12’ 2” 96’
16100 Scissor Lift N/A AVAIL 13’ 6” 14’ 7” 105’ 10”
2265 Scissor Lift N/A N/A 9’ 1” 11’ 5” 69’
2270 Scissor Lift N/A N/A 9’ 1” 11’ 7” 74’
2275 Scissor Lift N/A N/A 9’ 1” 11’ 2” 78’ 11”
2285 Scissor Lift N/A AVAIL 13’ 6” 12’ 4” 89’
2290 Scissor Lift N/A AVAIL 13’ 6” 13’ 1” 93’ 11”
22100 Scissor Lift N/A AVAIL 13’ 6” 14’ 103’ 11”
22110 Scissor Lift N/A AVAIL 13’ 6” 14’ 6” 108’ 11”
22120 Scissor Lift N/A AVAIL 13’ 11” 15’ 124’
Model Discharge Height Ground Length
1655 13’ 5” 5’ 2”
1670 17’ 4” 69’ 8”
1675 18’ 7” 74’ 6”
1685 21’ 2” 84’ 2”
1690 22’ 6” 89’
16100 25’ 1” 98’ 8”
2265 15’ 6” 63’
2270 16’ 10” 67’ 10”
2275 18’ 1” 72’ 8”
2285 20’ 9” 82’ 4”
2290 22’ 7” 87’ 2”
22100 25’ 96’ 10”
22110 26’ 5” 101’ 8”
22120 29’ 10” 116’ 2”
Model Discharge Height Ground Length
1655 18’ 4” 54’
1670 23’ 6” 68’ 1”
1675 25’ 2” 72’ 10”
1685 28’ 7” 82’ 3”
1690 30’ 4” 86’ 11”
16100 33’ 9” 96’ 4”
2265 21’ 1” 61’ 8”
2270 22’ 9” 66’ 4”
2275 24’ 6” 71’ 1”
2285 28’ 80’ 5”
2290 30’ 1” 85’ 2”
22100 33’ 6” 94’ 6”
22110 35’ 3” 99’ 3”
22120 40’ 113’ 4”
Model Discharge Height Ground Length
1655 23’ 2” 52’ 5”
1670 29’ 6” 66’ 1”
1675 31’ 7” 70’ 7”
1685 35’ 10” 79’ 8”
1690 37’ 11” 84’ 2”
16100 42’ 2” 93’ 3”
2265 26’ 5” 59’ 10”
2270 28’ 6” 64’ 4”
2275 30’ 8” 68’ 11”
2285 35’ 77’ 11”
2290 37’ 5” 82’ 5”
22100 41’ 8” 91’ 6”
22110 43’ 9” 96’
22120 49’ 10” 109’ 8”
Model Discharge Height Ground Length
1655 27’ 9” 50’ 6”
1670 35’ 3” 63’ 6”
1675 37’ 9” 67’ 10”
1685 42’ 9” 76’ 6”
1690 45’ 3” 80’ 10”
16100 50’ 3” 89’ 6”
2265 31’ 7” 57’ 7”
2270 34’ 1” 61’ 11”
2275 36’ 7” 66’ 3”
2285 41’ 9” 74’ 10”
2290 44’ 6” 79’ 2”
22100 49’ 6” 87’ 10”
22110 52’ 92’ 2”
22120 59’ 4” 105’ 2”

Accessories & Options Show / Hide more information

1. Convey-All™ 2200 Series Bin Fill Conveyors are our largest and fastest Bin Fill Conveyors. With a 22’’ belt in a 14’’ tube, these conveyors will move product up to 12,000BPH. The undercarriages are rugged and heavy duty, using structural steel and fabricated for bolt-together durability. Combine our Bin Fill Conveyors with a Convey-AllTM Transfer Conveyor or Swing Out for ultimate efficiency.
  • 360 degree swing allows the user to unload on
    either side of conveyor (no tractor in the way at
    end of conveyor)
  • Remote controlled swing can be placed into unload
    position with the push of a button
  • Long reach for maximum accessibility
2. MOVER KIT (SP) PACKAGE:
  • Our mover package takes convenience to a new
    level. Users can easily move large conveyors
    without hooking up to or tying up a tractor.
3. MOVER KIT (SP) PACKAGE:
  • Side or end PTO, gas, diesel, electric or hydraulic drive
  • Stainless steel components
  • Winch for collapsible hopper
  • Hydraulic lift

Calculators Show / Hide more information

Conveyor Length Calculator
  1. Conveyor Angle (A)
  2. Required Height (B)
