With over 35 years of experience in seed handling equipment, Convey-All® has provided conveyors to the ag industry since 1983. We take pride in building quality machinery with proven, straightforward designs.
Our Underbin Conveyors are built in sections, scalable to any site design, and are easily expandable for future growth.
Resources Show / Hide more information
Features Show / Hide more information
1. Mild steel adjustable legs at the discharge
2. Hanger brackets
3. Adjustable legs at discharge
4. Removable discharge hood
5. Adjustable belt tension

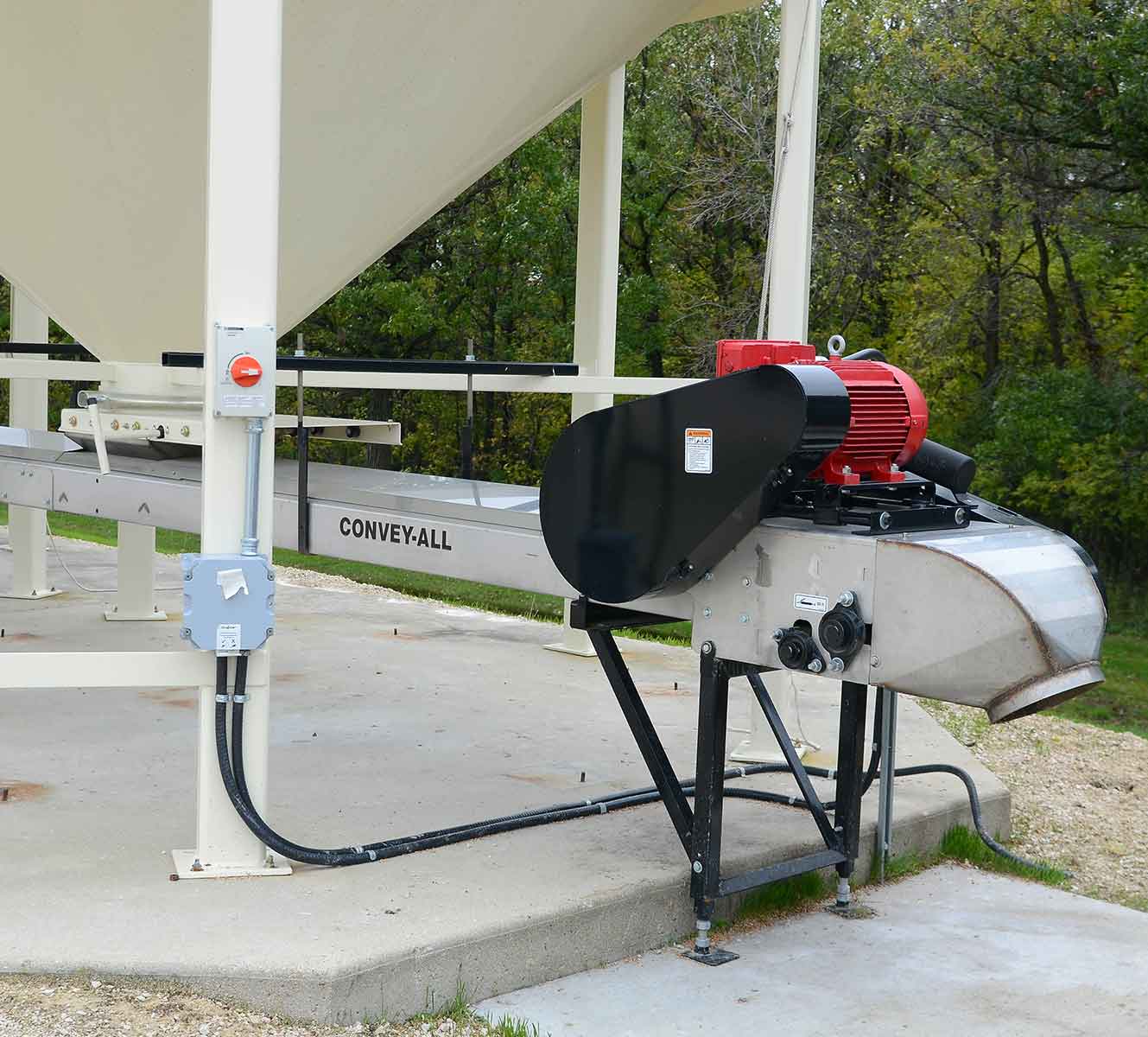

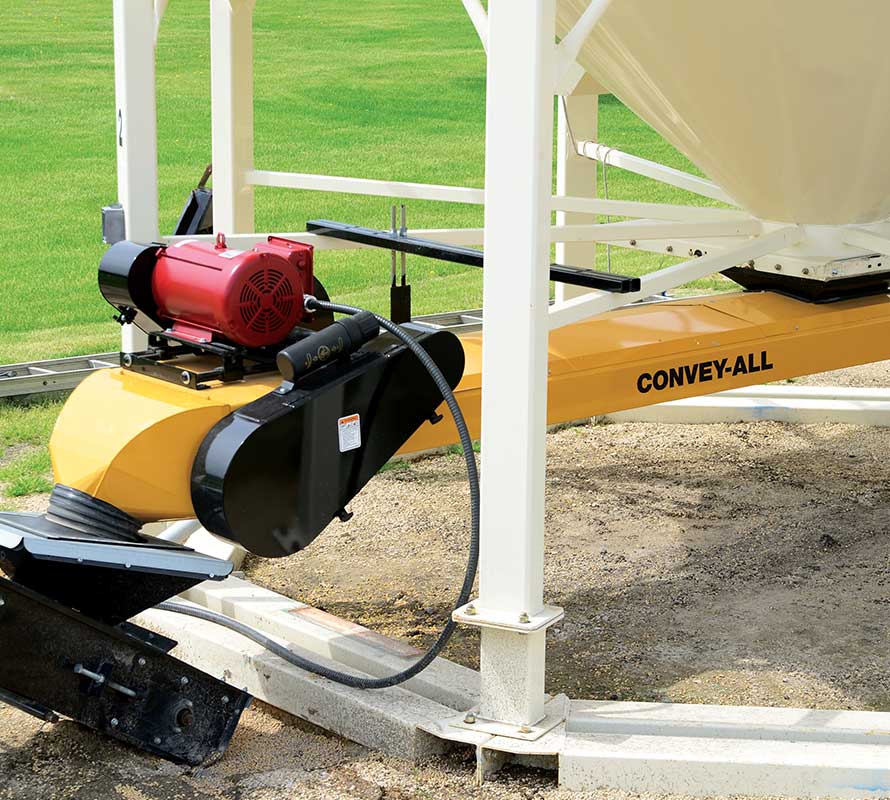

6. Electric drive (pulleys, belts, guards and mounts)
7. Bed rollers spaced every 24”
Applications Show / Hide more information
1.Seed
2.Grain
3.Fertilizer
Specifications Show / Hide more information
| Model | Belt Speed (fpm) | Capacity (bph) |
|---|---|---|
| 18 Inch | 400 | 2,900 |
| 18 Inch | 500 | 3,700 |
| 18 Inch | 600 | 4,400 |
| 24 Inch | 400 | 4,500 |
| 24 Inch | 500 | 5,600 |
| 24 Inch | 600 | 6,800 |
Accessories & Options Show / Hide more information
1.

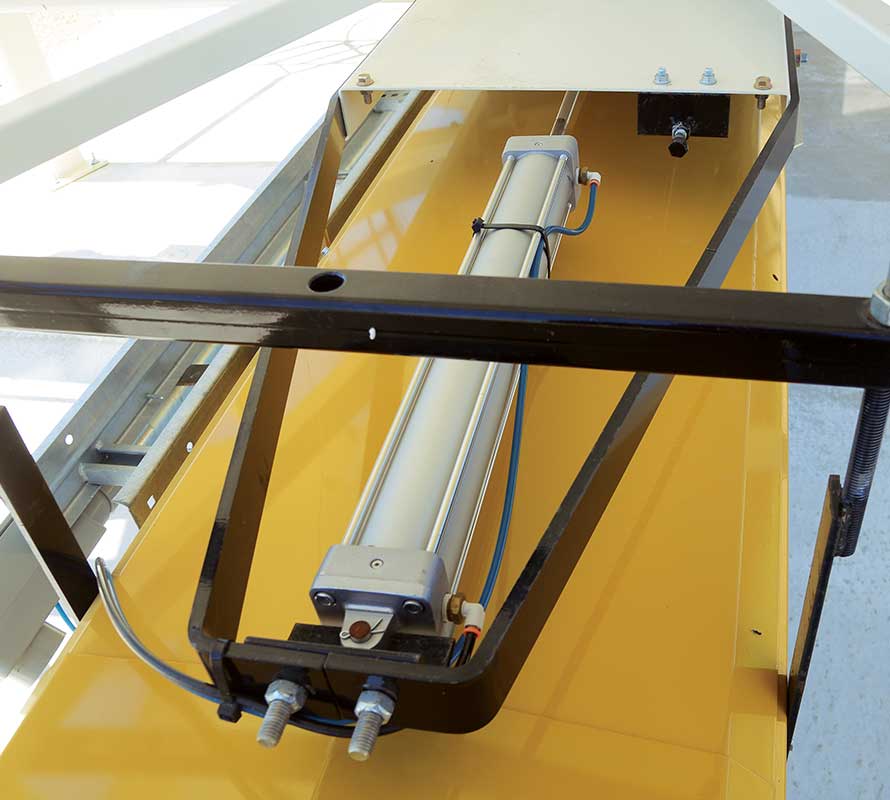

Air gates
2.
Weather covers
3.
Stainless steel components
4.

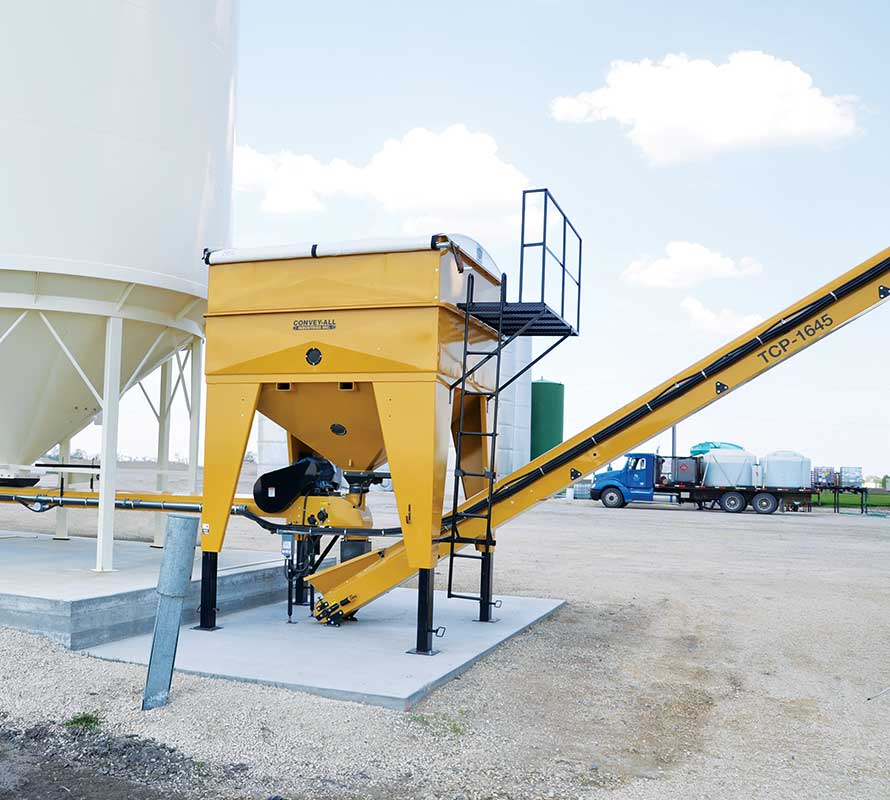

Receiving hoppers
