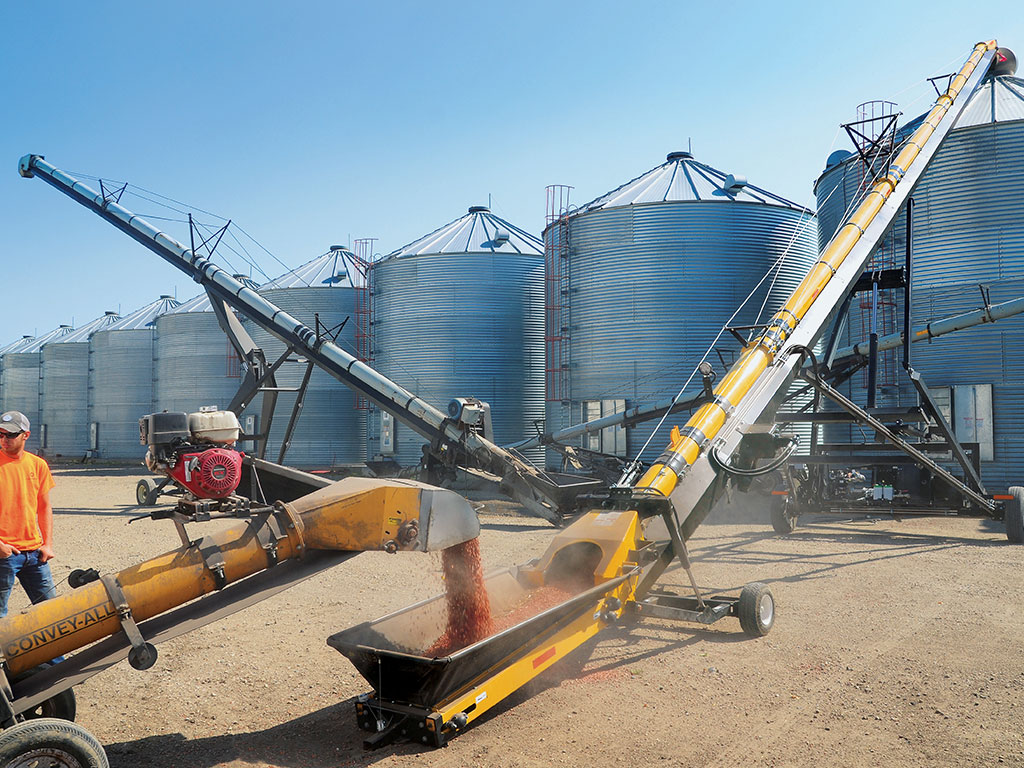

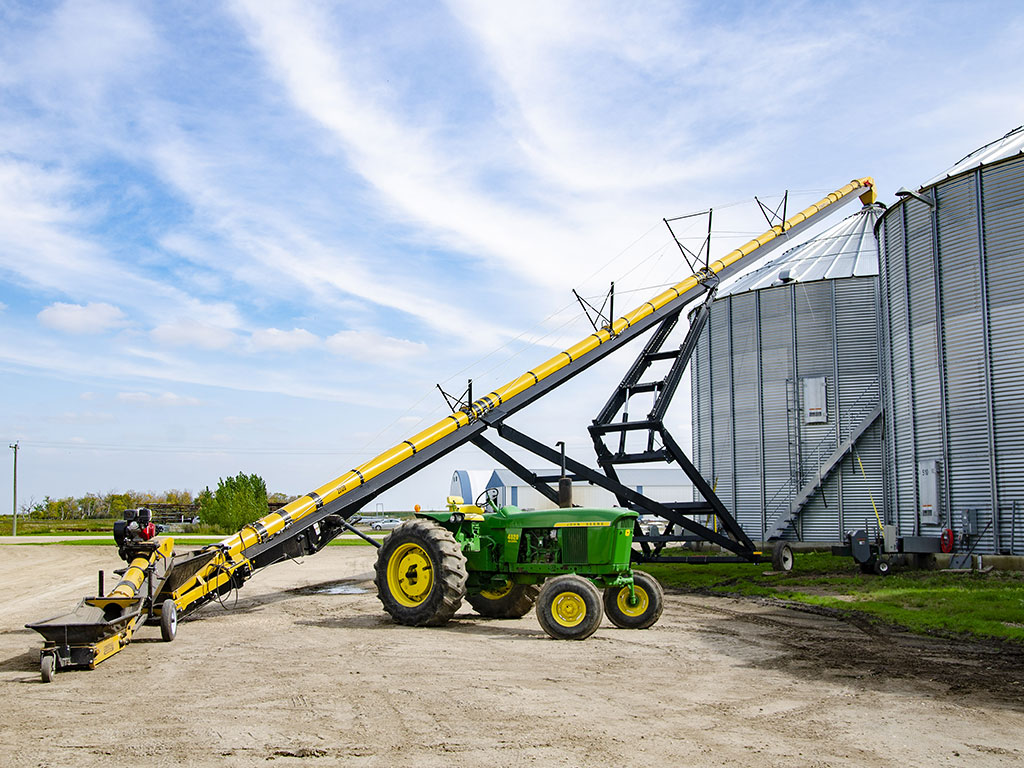

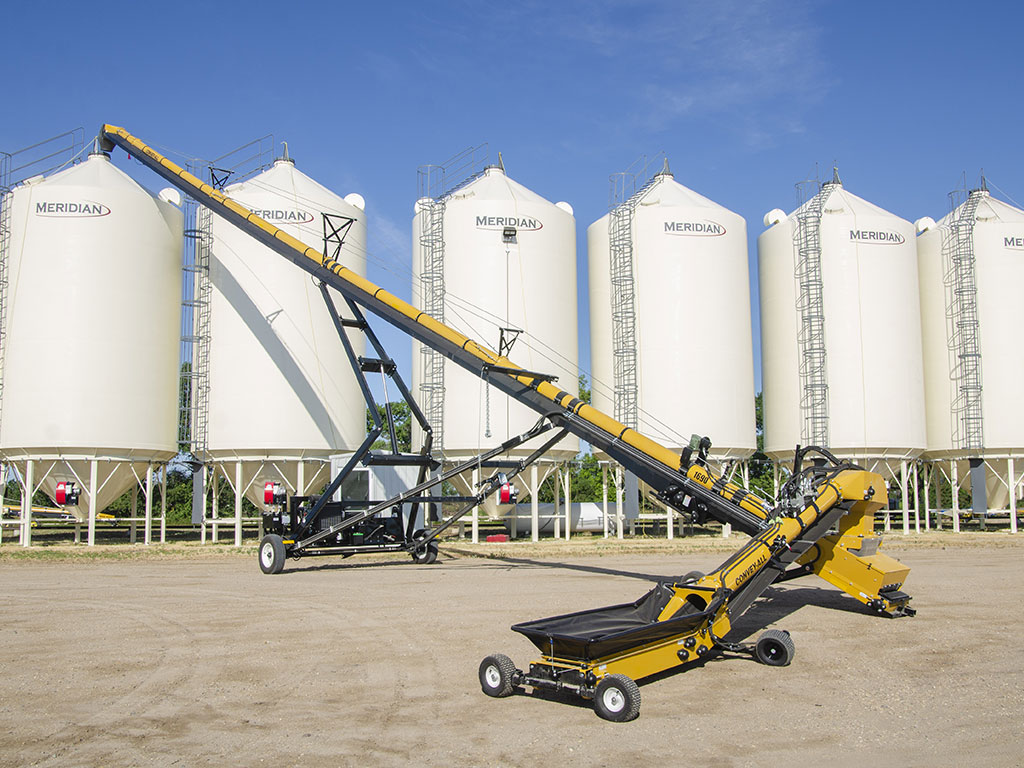

Convey-All™ has a complete range of tube conveyor lengths. A size for any job. Our easy moving, long reaching tube conveyors are great for filling bins or making large piles.

Convey-All™ conveyors are designed to be efficient and simple to use. The engine and control station are set low for easy access. The undercarriages are rugged and heavy duty, using structural steel and fabricated for bolt-together durability. Combine our Bin Fill Conveyors with a Convey-All™ Transfer Conveyor or Swing Out for ultimate efficiency.

Resources Show / Hide more information

Product Catalogue (Pdf)

Conveyors – Brochure (Pdf)

Tube Conveyor Operator Manual (Pdf)

Features Show / Hide more information

1. Collapsible hopper

2. Full length windguards

3. Heavy-duty scissor lift undercarriages

4. Positive Pinch Drive Box

Applications Show / Hide more information

1.Seed

2.Grain

3.Fertilizer

Specifications Show / Hide more information

16’’ BELT CONVEYORS
22’’ BELT CONVEYORS

		1655 Model	1670 Model	1675 Model	1685 Model	1690 Model	16100 Model
	Under Carriage	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift
	Mover Kit	N/A	AVAIL	AVAIL	AVAIL	AVAIL	N/A
	Swing Out	N/A	AVAIL	AVAIL	AVAIL	AVAIL	AVAIL
	Axle Width	11’ 4”	11’ 4”	11’ 4”	12’ 6”	12’ 6”	13’ 6”
	Transport Height	12’ 6”	11’ 10”	12’ 5”	11’ 7”	12’ 2”	14’ 7”
	Transport Length	60’ 8”	75’ 11”	80’ 11”	91’ 1”	96’	105’ 10”
15°	Discharge Height	13’ 5”	17’ 4”	18’ 7”	21’ 2”	22’ 6”	25’ 1”
15°	Length	5’ 2”	69’ 8”	74’ 6”	84’ 2”	89’	98’ 8”
20°	Discharge Height	18’ 4”	23’ 6”	25’ 2”	28’ 7”	30’ 4”	33’ 9”
20°	Length	54’	68’ 1”	72’ 10”	82’ 3”	86’ 11”	96’ 4”
25°	Discharge Height	23’ 2”	29’ 6”	31’ 7”	35’ 10”	37’ 11”	42’ 2”
25°	Length	52’ 5”	66’ 1”	70’ 7”	79’ 8”	84’ 2”	93’ 3”
30°	Discharge Height	27’ 9”	35’ 3”	37’ 9”	42’ 9”	45’ 3”	50’ 3”
30°	Length	50’ 6”	63’ 6”	67’ 10”	76’ 6”	80’ 10”	89’ 6”

		2265 Model	2270 Model	2275 Model	2285 Model	2290 Model	22100 Model	22110 Model	22120 Model
	Under Carriage	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift	Scissor Lift
	Mover Kit	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Swing Out	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Axle Width	9’ 1”	9’ 1”	9’ 1”	13’ 6”	13’ 6”	13’ 6”	13’ 6”	13’ 11”
	Transport Height	11’ 5”	11’ 7”	11’ 2”	12’ 4”	13’ 1”	14’	14’ 6”	15’
	Transport Length	69’	74’	78’ 11”	89’	93’ 11”	103’ 11”	108’ 11”	124’
15°	Discharge Height	15’ 6”	16’ 10”	18’ 1”	20’ 9”	22’ 7”	25’	26’ 5”	29’ 10”
15°	Length	63’	67’ 10”	72’ 8”	82’ 4”	87’ 2”	96’ 10”	101’ 8”	116’ 2”
20°	Discharge Height	21’ 1”	22’ 9”	24’ 6”	28’	30’ 1”	33’ 6”	35’ 3”	40’
20°	Length	61’ 8”	66’ 4”	71’ 1”	80’ 5”	85’ 2”	94’ 6”	99’ 3”	113’ 4”
25°	Discharge Height	26’ 5”	28’ 6”	30’ 8”	35’	37’ 5”	41’ 8”	43’ 9”	49’ 10”
25°	Length	59’ 10”	64’ 4”	68’ 11”	77’ 11”	82’ 5”	91’ 6”	96’	109’ 8”
30°	Discharge Height	31’ 7”	34’ 1”	36’ 7”	41’ 9”	44’ 6”	49’ 6”	52’	59’ 4”
30°	Length	57’ 7”	61’ 11”	66’ 3”	74’ 10”	79’ 2”	87’ 10”	92’ 2”	105’ 2”

Accessories & Options Show / Hide more information

1. SWING OUT (SO) PACKAGE:

360 degree swing allows the user to unload on either side of conveyor (no tractor in the way at end of conveyor)
Remote controlled swing can be placed into unload position with the push of a button
Long reach for maximum accessibility

2. MOVER KIT (SP) PACKAGE:

Our mover package takes convenience to a new level. Users can easily move large conveyors without hooking up to or tying up a tractor.

3. OPTIONAL FEATURES:

Side or end PTO, gas, diesel, electric or hydraulic drive

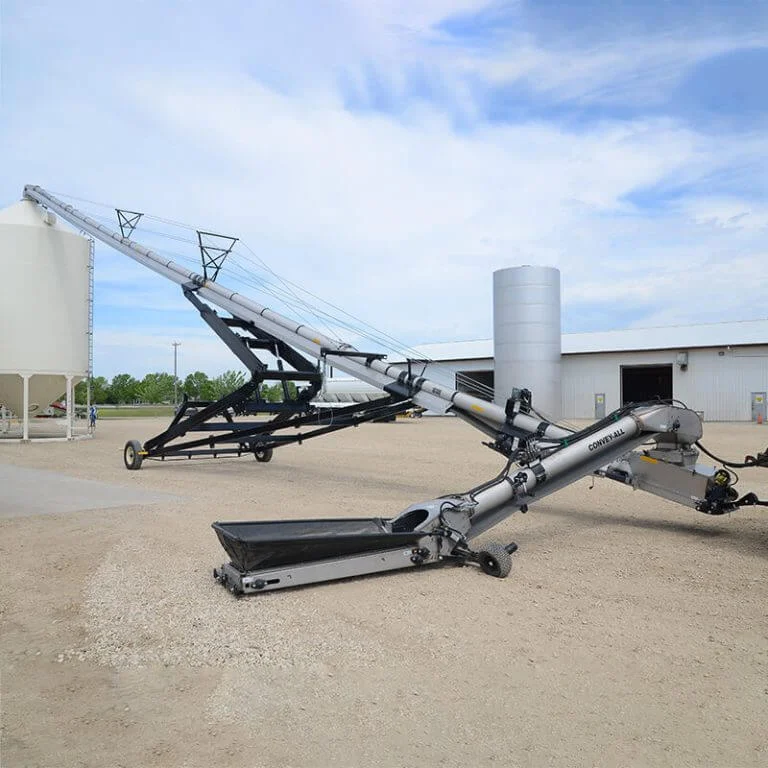

Stainless steel components
Hopper lift (on longer 22” conveyors)
Winch for collapsible hopper
Hydraulic lift
