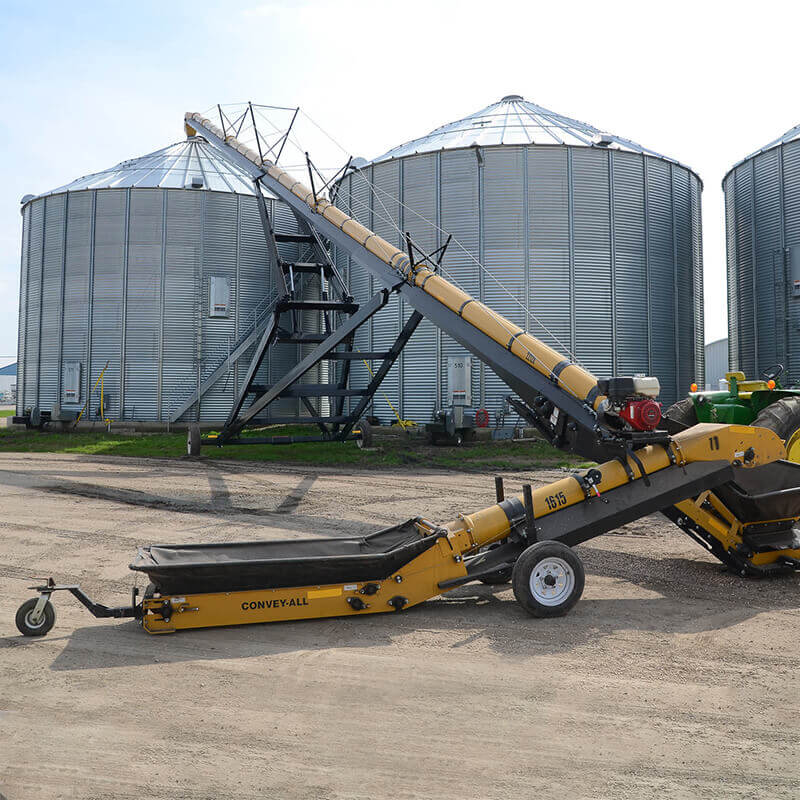

JUMP CONVEYORS

Convey-All™ Transfer Conveyors are well balanced, easy to maneuver and position, along with a longer collapsible hopper for superior containment and better reach. The conveyor is complete with a tow package which includes highway tires and hitch. We offer electric, hydraulic or gas drives, and capacities up to 12,000BPH.

Resources Request Information

Model	Discharge Height to Ground	Hopper to Ground	Overall Length	Hopper Length
1214-GN	36″ – 48″	6 1/2″	15′ 4″	4′ 9″
1615	36″ – 48″	6 1/2″ – 7 3/4″	17′ 4″	5′ 10″
1616-RC	36″ – 48″	4 5/8″	20′	7′
2218	36″ – 48″	6 1/2″ – 7 3/4″	20′ 2″	5′ 10″
2218-RC	36″ – 48″	4 5/8″	21′ 6″	7′
2228-DO	3′ 2″	8″	29′	9′ 6″

Well balanced, easy to manoeuvre and position
Longer hopper for superior containment, better reach

Electric, gas or hydraulic drive

Contact Meridian Manufacturing regarding to Jump Conveyors Warranty.
