Transfer Conveyors

Features
Applications
Specifications
Accessories

Convey-All™ offers three styles of Transfer Conveyors to the ag market: a standard Transfer Conveyor, Rail-Car Conveyor and Drive Over Conveyor. These conveyors are well balanced and easy to manoeuvre and position with a long hopper for superior containment and reach.


Resources Show / Hide more information


Features Show / Hide more information

1. TRANSFER CONVEYOR:
  • Well balanced, easy to manoeuvre and position
  • Longer hopper for superior containment, better reach

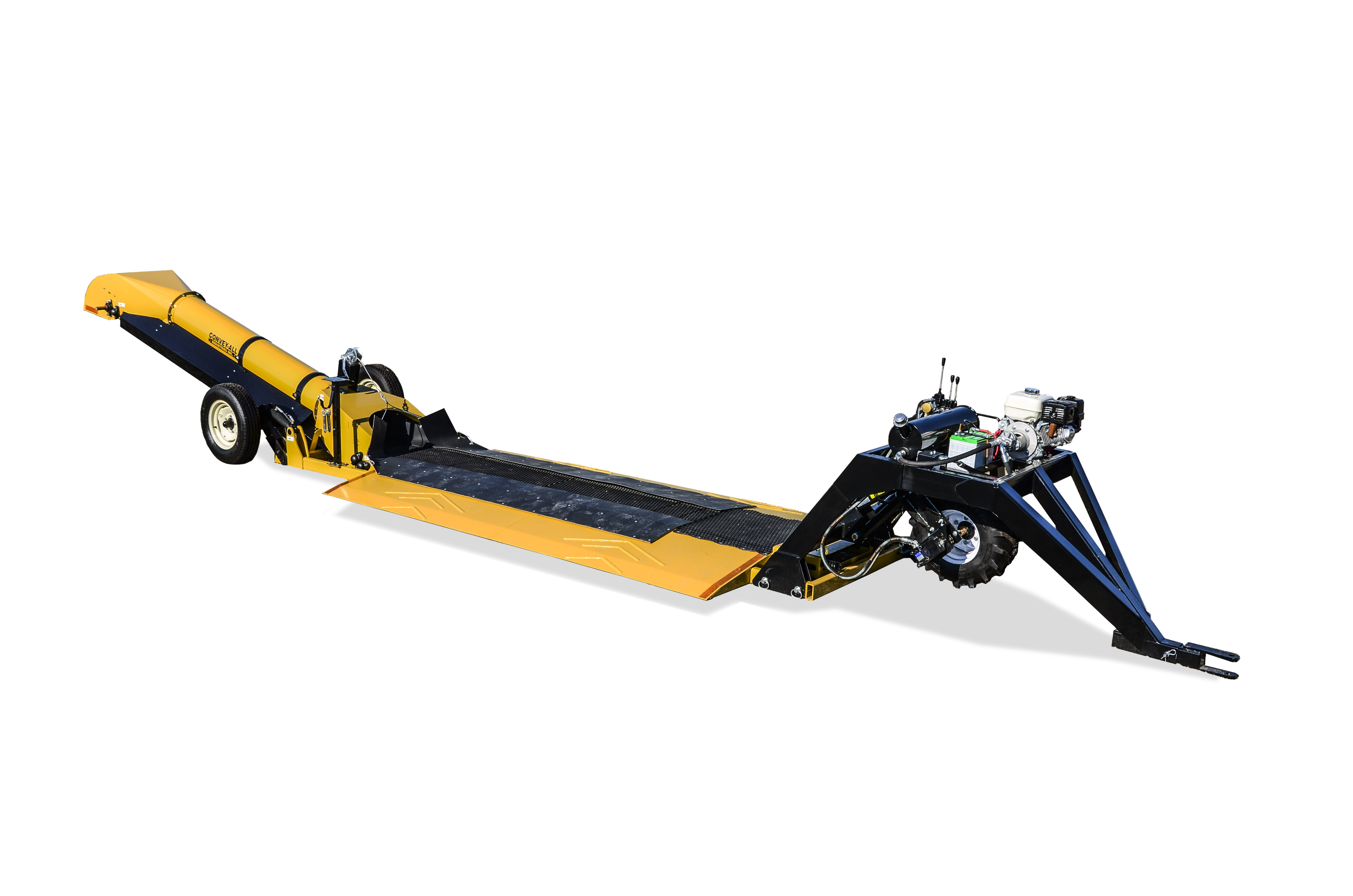

2. DRIVE-OVER CONVEYOR:
  • 22” rubber belt inside a 14” tube
  • 7” high deck for easy driving over
  • Extra large 12’ long deck, to easily position truck and trailer
  • Containment flaps lay flat to drive over, raise to hold product
  • Optional mover kit
3. RAILCAR CONVEYOR:
  • Well balanced, easy to manoeuvre and position
  • Extra low profile to easily fit under railcars
  • Tow package (highway tires and hitch)
  • Fold-up containment flaps to keep product on belt
  • Optional transition with hold-down wheels
  • Optional stainless steel

Applications Show / Hide more information

1.Seed
2.Grain
3.Fertilizer

Specifications Show / Hide more information

Model Discharge Height to Ground Hopper to Ground Overall Length Hopper Length
1214-GN 36” – 48” 61/2” 15’ 4” 4’ 9”
1615 38” – 48” 61/2” – 73/4” 17’ 4” 5’ 10”
1616-RC 36” – 48” 45/8” 20’ 7’
2218 38” – 48” 61/2” – 73/4” 20’ 2” 5’ 10”
2218-RC 36” – 48” 45/8” 21’ 6” 7’
2228-DO 3’ 2” 8” 29’ 9’ 6”

Accessories & Options Show / Hide more information

1.

Electric, gas or hydraulic drive
