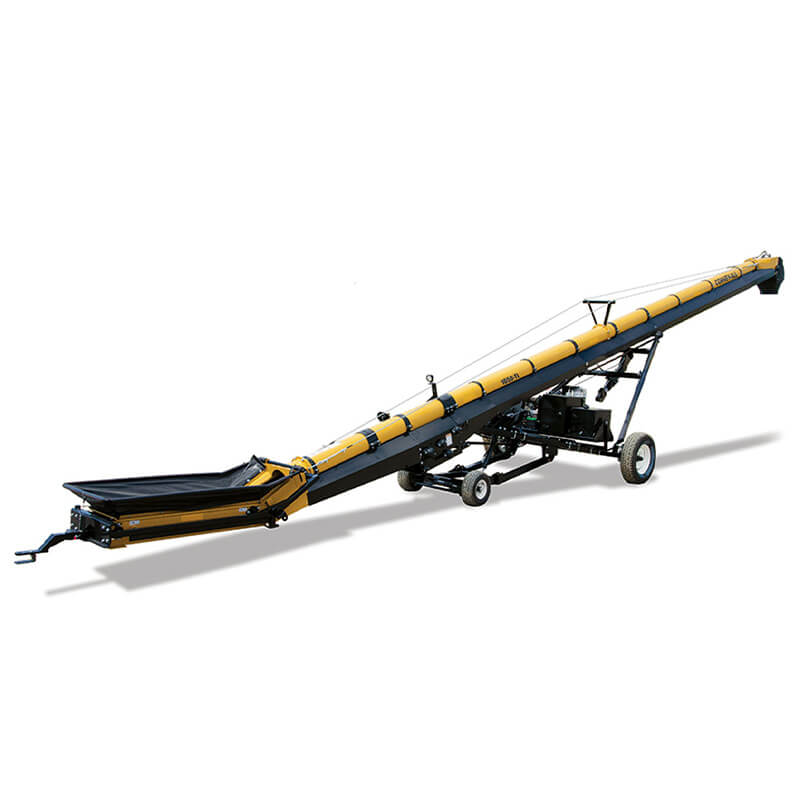

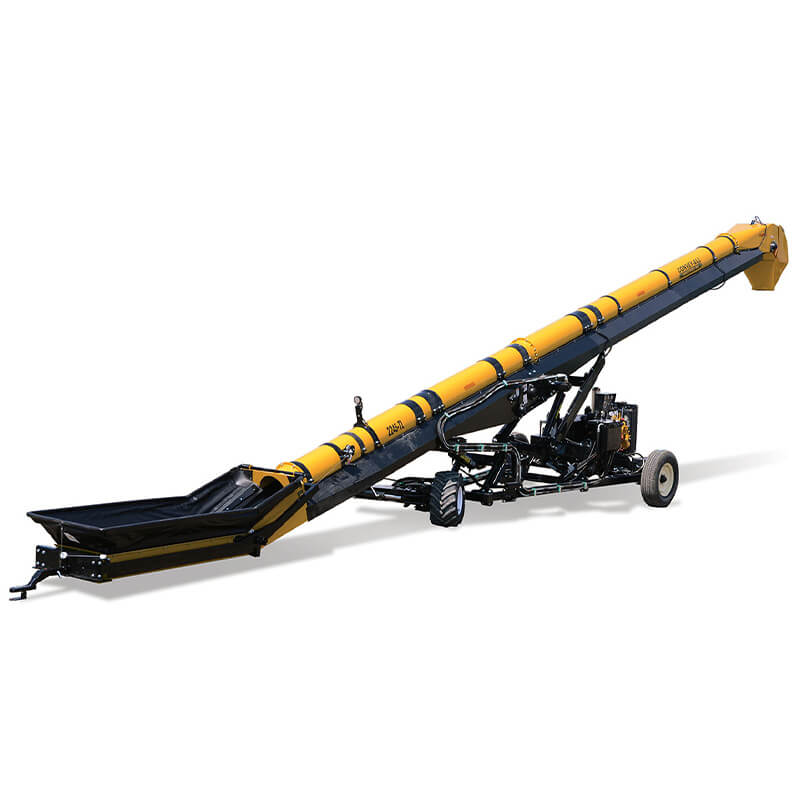

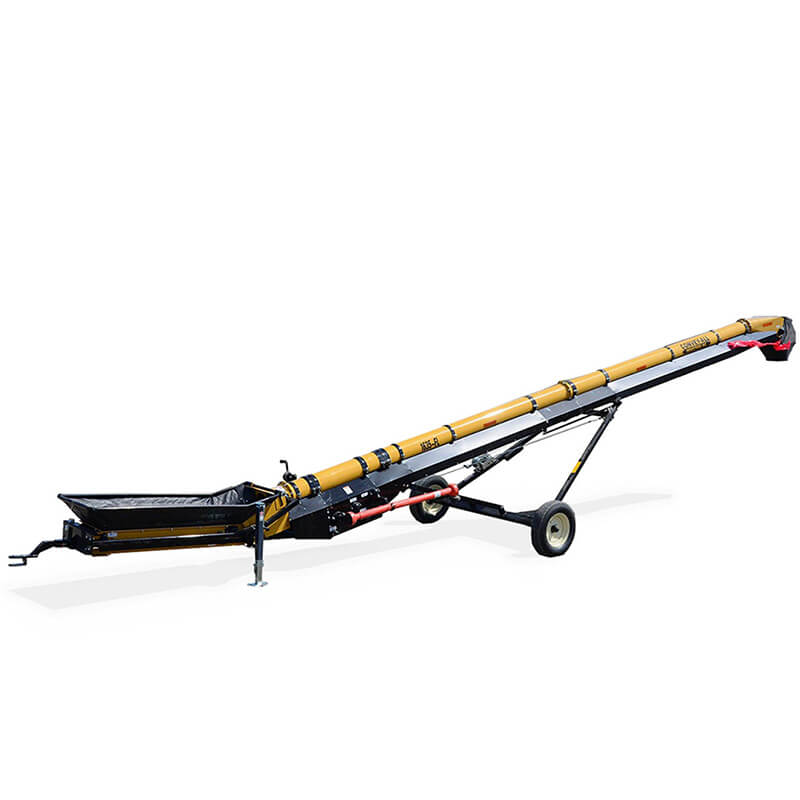

BELTED TRUCK LOAD CONVEYORS

Convey-All Truck Load Conveyors are our most popular line of conveyor. With 12″, 16″, and 22″ models to fit your farm″s needs, and with capacities up to 12,000BPH you can count on your conveyor to get the job done.

Our fully loaded Truck Load (TL) models are self-propelled, driving the conveyor directly to the truck. Being self-contained and fully hydraulic eliminates problematic belts, pulleys, chains or sprockets.

Convey-All signature hydraulic drive makes operation much safer than other belt driven products with more moving parts.

Resources Request Information

16” Belt Conveyors

Model	Axle Width	Transport Height	Transport Length	Discharge Height (20 Degrees)	Length (20 Degrees)	Discharge Height (25 Degrees)	Length (25 Degrees)	Discharge Height (30 Degrees)	Length (30 Degrees)
1640-TL	8′ 4″	9′ 7″	43′ 9″	10′ 9″	40′ 9″	14′ 1″	39′ 10″	17′ 4″	38′ 4″
1650-TL	8′ 4″	11′ 5″	53′ 7″	14′ 2″	46′	18′ 4″	44′ 8″	22′ 4″	43′
1658-TL	8′ 4″	12′ 10″	60′ 8″	16′ 9″	53′ 1″	21′ 6″	51′ 6″	26′ 1″	49′ 6″

22” Belt Conveyors

Model	Axle Width	Transport Height	Transport Length	Discharge Height (20 Degrees)	Length (20 Degrees)	Discharge Height (25 Degrees)	Length (25 Degrees)	Discharge Height (30 Degrees)	Length (30 Degrees)
2250-TL	8′ 4″	13′ 6″	51′ 6″	12′ 9″	44′ 3″	16′ 10″	43′ 1″	20′ 10″	41′ 7″
2258-TL	8′ 4″	15′ 4″	58′ 10″	15′ 4″	51′ 7″	20′ 1″	50′ 2″	24′ 7″	48′ 4″

Collapsible hopper
Full length windguards
Heavy-duty undercarriages
Hydraulic lift
Spring Tension Drive Box

1. FIELD LOADER (FL) PACKAGE:
Stainless steel components
Cold weather pkg (35hp gas engine)
Heavy-duty, Railcar Hopper
2. TRUCK LOAD (TL) PACKAGE:
Self-contained drive system
Heavy duty mover kit
Steering wheel(s) with hydraulic hopper lift
Steel fuel tank, hydraulic oil reservoir
Highway tires
Discharge hood with electric actuator
3. TRUCK LOAD (TL) OPTIONS:
Stainless steel components
22’’ Conveyors
Cold weather pkg (16’’ conveyors)
Hydraulic oil reservoir heater
Fender and light package
2-5/16” ball receiver hitch
Quad-adjust hood package
Heavy-duty, Railcar Hopper

Meridian Manufacturing warrants all new, unaltered tube conveyors intended for standard or on-farm usage against defects in material or workmanship for a period of one year from the date of purchase. For equipment used in commercial applications, Meridian provides a warranty against defects and workmanship for a period of 90 days.

For components not manufactured by Meridian, such as tires, engines, batteries, etc., please refer to the respective manufacturer for the applicable warranty information. Additional details can be obtained by contacting your authorized Meridian/Convey-All dealer or consulting your owner’s manual.
